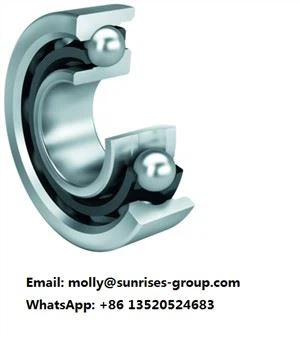

7314 BEP - Enkelrad vinkelkontaktkullager
Kontaktvinkel:40 grader;Höghastighet;Håldiameter:70 mm;Ytterdiameter:150 mm;Bredd:35 mm;C:119kN;C0:90kN.Vikt:2,65kg.
Applicering av enrads vinkelkontaktkullager
verktygsmaskinspindel, högfrekvensmotor, gasturbin, centrifugalseparator, framhjul för småbilar, differentialdrevsaxel.
7314 BEP Ritning och datablad
| Lager NEJ. | 7314 BEP - Enkelrad vinkelkontaktkullager | |
| d | 70 mm | Håldiameter |
| D | 150 mm | Ytterdiameter |
| B | 35 mm | Bredd |
| d1 | ≈101,1 mm | Axeldiameter på innerringen (stor sidoyta) |
| d2 | ≈84,4 mm | Axeldiameter på innerringen (liten sidoyta) |
| D1 | ≈121 mm | Axeldiameter på ytterringen (stor sidoyta) |
| a | 64 mm | Avstånd sida vänd mot tryckpunkt |
| r1,2 | min.2,1 mm | Fasdimension |
| r3,4 | min.1,1 mm | Fasdimension |
| da | min.82 mm | Diameter på axeldistansen |
| Jaha | max.138 mm | Hölje med distansdiameter |
| Db | max.143 mm | Diameter på husets distans |
| ra | max.2 mm | Radie av filé |
| rb | max.1 mm | Radie av filé |
| Grundläggande dynamisk belastning | C | 119 kN |
| Grundläggande statisk belastning | C0 | 90 kN |
| Trötthetsbelastningsgräns | Pu | 3,65 kN |
| Referenshastighet | 5 600 r/min | |
| Begränsande hastighet | 5 300 r/min | |
| Minsta axiell lastfaktor | A | 0.145 |
| Minsta radiella belastningsfaktor | kr | 0.1 |
| Begränsande värde | e | 1.14 |
Relaterade vinkelkontaktkullager finns också i lager. Vi har ett gott rykte för lagerkvalitet i världen.
| Lager nr. | Storlek (mm) |
| 7200 BECBP | 10x30x9 |
| 7200 BEP | 10x30x9 |
| 7201 BECBP | 12x32x10 |
| 7201 BEGAP | 12x32x10 |
| 7201 BEP | 12x32x10 |
| 7301 BE-2RZP | 12x37x12 |
| 7301 BEP | 12x37x12 |
| 7202 BE-2RZP | 15x35x11 |
| 7202 BEP | 15x35x11 |
| 7202 BECBP | 15x35x11 |
| 7202 BEGAP | 15x35x11 |
| 7202 BEGBP | 15x35x11 |
| 7202 ACCBM | 15x35x11 |
| 7302 BE-2RZP | 15x42x13 |
| 7302 BECBP | 15x42x13 |
| 7302 BEP | 15x42x13 |
| 7203 BEY | 17x40x12 |
| 7203 BE-2RZP | 17x40x12 |
| 7203 BEP | 17x40x12 |
| 7203 BECBP | 17x40x12 |
| 7203 BEGAP | 17x40x12 |
| 7203 BECBM | 17x40x12 |
| 7203 ACCBM | 17x40x12 |
| 7303 BE-2RZP | 17x47x14 |
| 7303 BECBP | 17x47x14 |
| 7303 BEGAP | 17x47x14 |
| 7303 BEP | 17x47x14 |
| 7204 BE-2RZP | 20x47x14 |
| 7204 BEP | 20x47x14 |
| 7204 BECBJ | 20x47x14 |
| 7204 BECBP | 20x47x14 |
| 7204 BECBPH | 20x47x14 |
| 7204 BECBY | 20x47x14 |
| 7204 BEGAP | 20x47x14 |
| 7204 BEGBP | 20x47x14 |
| 7204 BECBM | 20x47x14 |
| 7204 ACCBM | 20x47x14 |
| 7304 BE-2RZP | 20x52x15 |
| 7304 BEP | 20x52x15 |
| 7304 BECBP | 20x52x15 |
| 7304 BECBPH | 20x52x15 |
| 7304 BEGAP | 20x52x15 |
| 7304 BEGBP | 20x52x15 |
| 7304 BECBM | 20x52x15 |
| 7304 BECBY | 20x52x15 |
| 7304 ACCBM | 20x52x15 |
| 7205 BE-2RZP | 25x52x15 |
| 7205 BEP | 25x52x15 |
| 7205 BEY | 25x52x15 |
| 7205 BECBP | 25x52x15 |
| 7205 BECBPH | 25x52x15 |
| 7205 BECBY | 25x52x15 |
| 7205 BEGAP | 25x52x15 |
| 7205 BEGAY | 25x52x15 |
| 7205 BEGBY | 25x52x15 |
| 7205 BECBM | 25x52x15 |
| 7205 ACCBM | 25x52x15 |
| 7305 BE-2RZP | 25x62x17 |
| 7305 BEP | 25x62x17 |
| 7305 BECBP | 25x62x17 |
| 7305 BECBPH | 25x62x17 |
| 7305 BECBY | 25x62x17 |
| 7305 BEGAP | 25x62x17 |
| 7305 BEGBP | 25x62x17 |
| 7305 BEGBY | 25x62x17 |
| 7305 BECBM | 25x62x17 |
| 7305 ACCBM | 25x62x17 |
| 7405 BCBM | 25x80x21 |
| 7405 BM | 25x80x21 |
| 7206 BE-2RZP | 30x62x16 |
| 7206 BEP | 30x62x16 |
| 7206 BECBP | 30x62x16 |
| 7206 BECBPH | 30x62x16 |
| 7206 BEGAP | 30x62x16 |
| 7206 BEGBP | 30x62x16 |
| 7206 BECBM | 30x62x16 |
| 7206 BECBY | 30x62x16 |
| 7206 BEGAJ | 30x62x16 |
| 7206 BEGAY | 30x62x16 |
| 7206 ACCBM | 30x62x16 |
| 7306 BE-2RZP | 30x72x19 |
| 7306 BEP | 30x72x19 |
| 7306 BEGBM | 30x72x19 |
| 7306 BECBP | 30x72x19 |
| 7306 BEGAP | 30x72x19 |
| 7306 BEGAPH | 30x72x19 |
| 7306 BEGBP | 30x72x19 |
| 7306 BECBM | 30x72x19 |
| 7306 BEGAM | 30x72x19 |
| 7306 BECBY | 30x72x19 |
| 7306 BEGBY | 30x72x19 |
| 7306 ACCBM | 30x72x19 |
| 7406 BCBM | 30x90x23 |
| 7406 BM | 30x90x23 |
| 7207 BE-2RZP | 35x72x17 |
| 7207 BEP | 35x72x17 |
| 7207 BECBP | 35x72x17 |
| 7207 BECBPH | 35x72x17 |
| 7207 BEGAP | 35x72x17 |
| 7207 BEGBP | 35x72x17 |
| 7207 BECBM | 35x72x17 |
| 7207 BEGAM | 35x72x17 |
| 7207 BECBY | 35x72x17 |
| 7207 BÖRJA | 35x72x17 |
| 7207 BEGBY | 35x72x17 |
| 7207 ACCBM | 35x72x17 |
| 7307 BE-2RZP | 35x80x21 |
| 7307 BEP | 35x80x21 |
| 7307 BECBP | 35x80x21 |
| 7307 BECBY | 35x80x21 |
| 7307 BEGAP | 35x80x21 |
| 7307 BEGAPH | 35x80x21 |
| 7307 BEGBP | 35x80x21 |
| 7307 BECBM | 35x80x21 |
| 7307 BEGAM | 35x80x21 |
| 7307 ACCBM | 35x80x21 |
| 7407 BCBM | 35x100x25 |
| 7407 BM | 35x100x25 |
| 7208 BE-2RZP | 40x80x18 |
| 7208 BEP | 40x80x18 |
| 7208 BECBJ | 40x80x18 |
| 7208 BECBP | 40x80x18 |
| 7208 BECBPH | 40x80x18 |
| 7208 BEGAP | 40x80x18 |
| 7208 BECBM | 40x80x18 |
| 7208 BECBY | 40x80x18 |
| 7208 BEGAY | 40x80x18 |
| 7208 BEGBY | 40x80x18 |
| 7208 ACCBM | 40x80x18 |
| 7308 BE-2RZP | 40x90x23 |
| 7308 BEP | 40x90x23 |
| 7308 BECAP | 40x90x23 |
| 7308 BECBJ | 40x90x23 |
| 7308 BECBP | 40x90x23 |
| 7308 BEGAP | 40x90x23 |
| 7308 BEGAPH | 40x90x23 |
| 7308 BEGBP | 40x90x23 |
| 7308 BECBM | 40x90x23 |
| 7308 BEGAM | 40x90x23 |
| 7308 BEGBM | 40x90x23 |
| 7308 BECBY | 40x90x23 |
| 7308 BEGBY | 40x90x23 |
| 7308 ACCBM | 40x90x23 |
| 7408 BCBM | 40x110x27 |
| 7408 BGBM | 40x110x27 |
| 7408 BM | 40x110x27 |
| 7209 BE-2RZP | 45x85x19 |
| 7209 BEP | 45x85x19 |
| 7209 BECBJ | 45x85x19 |
| 7209 BECBP | 45x85x19 |
| 7209 BEGAP | 45x85x19 |
| 7209 BEGAPH | 45x85x19 |
| 7209 BECBM | 45x85x19 |
| 7209 BECBY | 45x85x19 |
| 7209 BEGAY | 45x85x19 |
| 7209 BEGBY | 45x85x19 |
| 7209 ACCBM | 45x85x19 |
| 7309 BE-2RZP | 45x100x25 |
| 7309 BEP | 45x100x25 |
| 7309 BECAP | 45x100x25 |
| 7309 BECBJ | 45x100x25 |
| 7309 BECBP | 45x100x25 |
| 7309 BEGAM | 45x100x25 |
| 7309 BEGAP | 45x100x25 |
| 7309 BEGAPH | 45x100x25 |
| 7309 BEGBP | 45x100x25 |
| 7309 BECBM | 45x100x25 |
| 7309 BECBY | 45x100x25 |
| 7309 BEGBY | 45x100x25 |
| 7309 ACCBM | 45x100x25 |
| 7409 BCBM | 45x120x29 |
| 7409 BGBM | 45x120x29 |
| 7409 BGM | 45x120x29 |
| 7210 BE-2RZP | 50x90x20 |
| 7210 BEP | 50x90x20 |
| 7210 BECBJ | 50x90x20 |
| 7210 BECBP | 50x90x20 |
| 7210 BECBPH | 50x90x20 |
| 7210 BECBY | 50x90x20 |
| 7210 BEGAP | 50x90x20 |
| 7210 BEGBP | 50x90x20 |
| 7210 BECBM | 50x90x20 |
| 7210 ACCBM | 50x90x20 |
| 7310 BE-2RZP | 50x110x27 |
| 7310 BEGAF | 50x110x27 |
| 7310 BEP | 50x110x27 |
| 7310 BEGBY | 50x110x27 |
| 7310 BECBJ | 50x110x27 |
| 7310 BECBP | 50x110x27 |
| 7310 BEGAP | 50x110x27 |
| 7310 BEGAPH | 50x110x27 |
| 7310 BEGBP | 50x110x27 |
| 7310 BECAM | 50x110x27 |
| 7310 BECBM | 50x110x27 |
| 7310 BEGAM | 50x110x27 |
| 7310 BECBY | 50x110x27 |
| 7310 BEGAY | 50x110x27 |
| 7310 ACCBM | 50x110x27 |
| 7410 BCBM | 50x130x31 |
| 7410 BGAM | 50x130x31 |
| 7410 BM | 50x130x31 |
| 7211 BE-2RZP | 55x100x21 |
| 7211 BEP | 55x100x21 |
| 7211 BECBJ | 55x100x21 |
| 7211 BECBP | 55x100x21 |
| 7211 BECBPH | 55x100x21 |
| 7211 BECBY | 55x100x21 |
| 7211 BEGAP | 55x100x21 |
| 7211 BEGBY | 55x100x21 |
| 7211 BECBM | 55x100x21 |
| 7211 ACCBM | 55x100x21 |
| 7311 BEP | 55x120x29 |
| 7311 BECBJ | 55x120x29 |
| 7311 BECBP | 55x120x29 |
| 7311 BECBPH | 55x120x29 |
